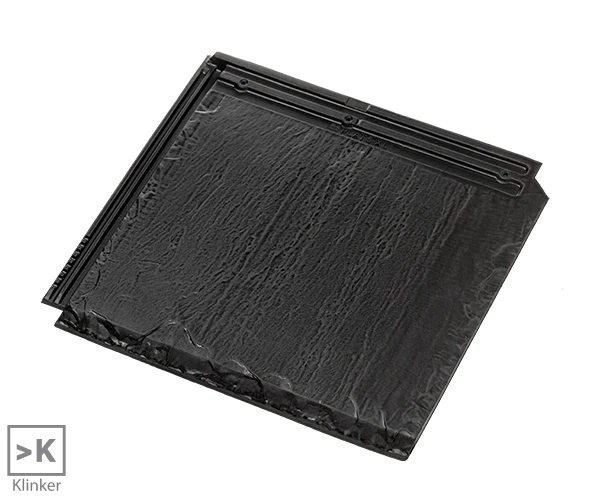

FLAT-5XL®
Characteristics
Length: 457 mm
Width: 510 mm
Weight: 6,55 Kg./Teja
Units/sq.m.: 5,48 Uds.
Useful length: (Batten distance) VARIABLE 340 - 385 mm
Units per ml eave line: 2
Minimum pitch recommended 30% – 17º (*)
Useful width 475 mm
Pallet info 152 units / 1.023 Kg.
Minimum order 2 roof tiles
FLAT roof tiles
The FLAT-5XL is another example of the innovation, development and improvement of our products which, together with our exclusive BorjaJET finishing technology, can make architects’ impossible dreams a reality.
The largest ceramic roof tile ever made.
- High performance in installation (5 units/sq.m.)
- Wide range of finishes (BorjaJET exclusive)
FLAT-5XL BorjaJET is a product award-winning of Red Dot Award: Product Design 2019
Approximate values: If the roof tiles are installed on battens, the useful length must be calculated on site. A tolerance of ± 2% is allowed on the dimensions of the roof tiles according to UNE-EN 1024.
(*) In zone 1 (protected area), arranged in staggered formation with waterproof laminate and batten distance of 340 mm on a skirt of up to 6.5 m. Check pitch pannel according to the roof length and the geographical area according to UNE-EN 136020.
Quality approvals (downloads)
CE
CE Marking on a product is a manufacturer’s declaration that the product complies with the essential requirements of the relevant European health, safety and environmental protection legislation, in practice by many of the so-called Product Directives.
Applicable to finishings:
Leon Matte
Nepal Orange
Paris Ocre
Austin Grey
Denver Gold
Denver Iris
Sidney Graphite
Tokyo Copper
Ibiza Pink
Roma Dark
Irish Green
AENOR
AENOR ensure compliance with the requirements of the European standard applicable to each product, demonstrating compliance with the requirements of customers and regulations applicable in your case.
Roof tiles and special pieces of fired clay AENOR certificate are suitable for covering roofs and vertical cladding walls.
Applicable to finishings:
Leon Matte
Nepal Orange
Paris Ocre
Austin Grey
Denver Gold
Denver Iris
Sidney Graphite
Tokyo Copper
Ibiza Pink
Roma Dark
Irish Green
ICC
The evaluation report ICC-ES is issued for products that meet the international and residential building codes (IBC and IRC), valuing the covering properties on the roof, fire rating and wind resistance.
When installed in compliance with the report, they are a class A roof.
Applicable to finishings:
50 years warranty
Applicable to finishings:
