C-40.15

Characteristics

Length: 40.8 cm.
Width: 15.0 cm. (max.) / 11.6 cm. (min.)
Weight: 1.35 Kg./ut.
Units/sq.m.: 33 roof tiles
Units per ml eave line: 12 roof tiles

Weight per sq. m.: 45 Kg
Units per lm ridge: 3 roof tiles
Units per lm edge: 3 roof tiles
Max. overlap: 15.0 cm
Min. overlap: 8.0 cm
Recommended support: Under-tile roof sheet
Dry installation using: Curved roof tile fixing clip
Roof Tiles per pallet: 364 units / 506 Kg. // 728 units / 950 Kg.
Minimum order: 13 roof tiles

BorjaCLASS

BorjaCLASS

THE VALUE OF TRADITION
Curved roof tile are the most widely-used roof tile format.

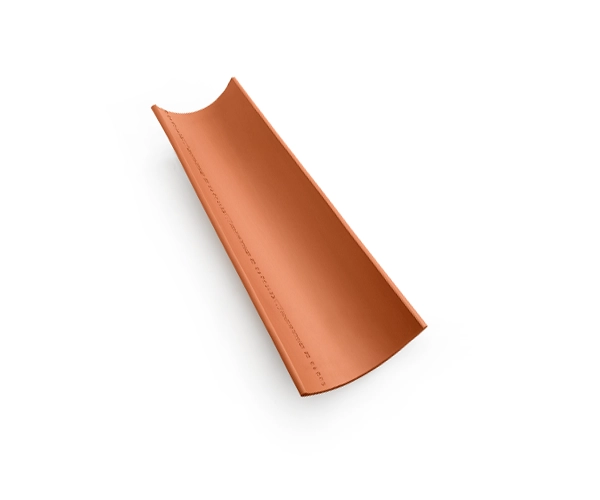

Curved roof tile with smooth curvature profile of 40 cm. in length and 15 cm. wide, which forms a gutter profile roof, its design allows different overlap measures between the parts. The edges tend to be convergent resulting a wide end and another narrow to facilitate the assembly of pans and covers with the same format.

Approximate values: Installation must comply with Code of practice for the design and fixing of roofs with clay roofing tiles for the region and Tejas Borja specifications.

Quality approvals (downloads)
